Product Description

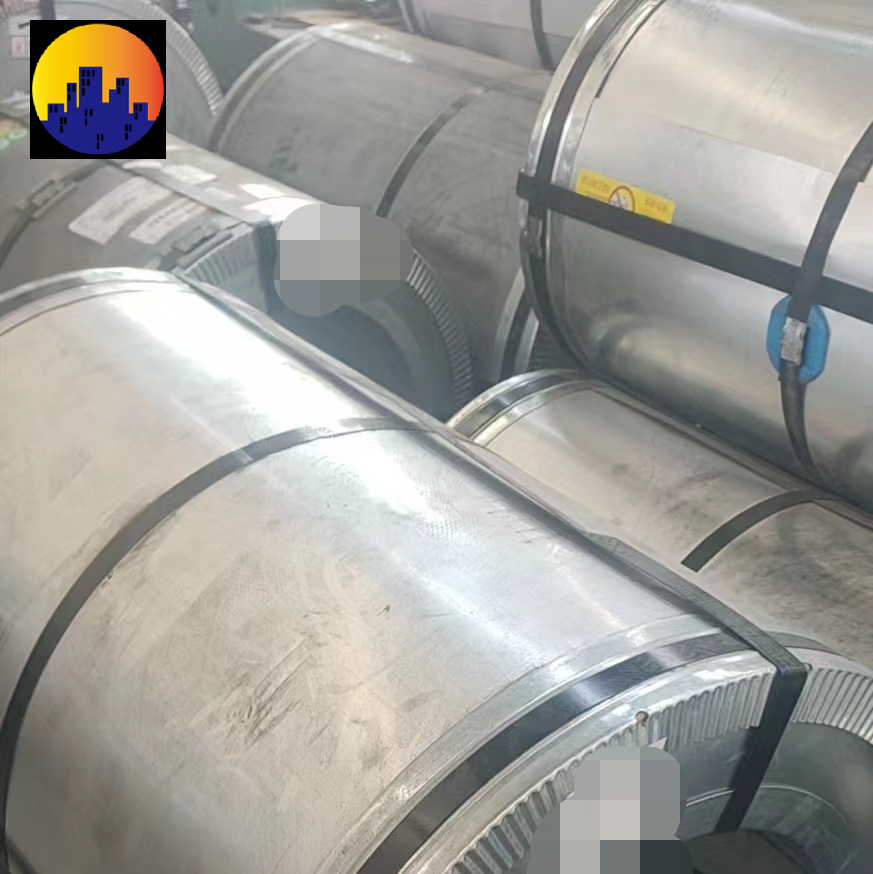

Silicon Steel

Silicon steel, also known as electrical steel, silicon electrical steel, lamination steel, relay steel, or transformer steel is specialty steel with silicon added to it, which improves its electrical resistivity and magnetic properties, and reduces hysteresis loss. This steel is ideal for various electrical applications where electromagnetic fields are important, such as transformers, magnetic coils, and electrical motors.


Electrical steel usually referred to as cold-rolled electrical steel, can be divided into two major categories including grain-oriented electrical steel and non-oriented electrical steel. Grain-oriented electrical steel, with its easy magnetization direction parallel to the rolling direction, has excellent magnetic properties in this direction including low core loss, high permeability, and low magnetostriction, and is widely used in the transformer industry. Further, it can obtain lower core loss by domain refinement treatment. Meanwhile, non-oriented electrical steel, featured by a random distribution of grain orientation and magnetic isotropy, is widely applicable to the motor industry.


Grain-oriented electrical steel usually contains a level of 3% silicon and is processed in a way to develop ideal properties in the rolling direction. Non-oriented electrical steel usually contains a level of 2%-3.5% silicon. It has similar magnetic properties in all directions, the so-called isotropy. Cold-rolled non-grain-oriented steel (CRNGO) is less expensive than cold-rolled grain-oriented steel (CRGO). CRNGO can be used in cost-oriented applications with the inconstant direction of magnetic flux, such as electric motors and generators. CRGO is usually in coil form and has to be cut into laminations further, being used in transformer core applications, such as certain internal parts in audio output transformers.


下载 (7).jpg


Product Specification and Size :

Standard Size


ThicknessWidthSlittingInside DiameterOutside Diameter
0.35mm, 0.50mm, 0.65mmOriginal: 750~1290mm40~645mm508~610mm800~1550mm


Silicon Steels and Their Applications

Silicon steel is the most important magnetic material in industrial applications. The general applications include volt relays or pulse transformers from the generator, automotive, and transformer sectors.


Silicon steel is undoubtedly the most important soft magnetic material in use today. Applications vary in quantities from the few ounces used in small relays or pulse transformers to tons used in generators, motors, and transformers. Continued growth in electrical power generation has required development of better steels to decrease wasteful dissipation of energy (as heat) in electrical apparatus and to minimize the physical dimensions of the increasingly powerful equipment now demanded.


Substantial quantities of oriented steel are used, mainly in power and distribution transformers. However, it has not supplanted nonoriented silicon steel, which is used extensively where a low-cost, low-loss material is needed, particularly in rotating equipment. Mention should also be made of the relay steels, used widely in relays, armatures, and solenoids. Relay steels contain 1.25 to 2.5% Si, and are used in direct current applications because of better permeability, lower coercive force, and freedom from aging.


Applications for oriented silicon steel include transformers (power, distribution, ballast, instrument, audio, and specialty), and generators for steam turbine and water wheels.


Fields of Application

Fields of applicationGrain-oriented electrical steelNon-oriented electrical steel
Series GSeries PSeries RSeries ASeries AHSeries ARSeries AT
230~400440~700800~1300230~470600~1000
RotatorsLarge-sized motors







Medium-sized motors






Compressor motors



General motors



Small-sized precision motors



Motors for electric cars





Static deviceHigh-frequency motors






Large-sized transformers






Small-sized power transformers
Transformers for instruments






Reactors and magnetic amplifiers





Power switches








Transformers for welding






Voltage regulators



Magnetic sealers





Electromagnetic devices for accelerators






-Material Selection

Grain-oriented electrical steel

VarietiesCommon typeHigh induction typeDomain refinedhigh induction type
Large motors
Large transformers
Medium and small transformers
Distributing transformers
Voltage regulator
Reactor and magnetic amplifier
IF transformer

Mutual inductor
TV transformer
Radio transformer
Radio broadcast transformer


Mechanical Property

Mechanical Property
GradeYeild Strength(N/mm2)Ultra-TensionStrength(N/mm2)Ductility(%)Hardness(HV1
M35W23043056020.0225
M35W25041555020.5220
M35W27040051520.5215
M35W30036048021.5195
M35W36035048023.5190
M35W44027542027.5165
M35W55026541533.5160
M50W25043056019.0230
M50W27041055021.5225
M50W29039554522.5220
M50W31038551024.5210
M50W35035047526.5190
M50W40032046036.0170
M50W47029542535.0160
M50W60028041037.0140
M50W80028540538.5135
M50W1300(D)25036040.0115


Insulating Coating

Insulating Coating
Coating typesM11M21
ComponentChromium containing , semi organic coatingChromium free, semi organic coating
Coating thickness(μm)0.7~1.50.8~5.0
Interlayer resistance(Ω•mm2 /slice)≥100≥100
Adhesive propertyClass A or class BClass A or class B
Punching propertyExcellentExcellent
Antirust propertyExcellentExcellent
Heat resisting propertyResistant annealing at 750 C, N2 protection, for 2hAnnealing resistance in general
