Product Description

Searching Hastelloy distributors in China?

TGPX is your first choice.


Hastelloy alloy is a nickel based alloy.

It comes in primarily two groups; one with more molybdenum and the other with more chromium. Both are called the Hastelloy.

They are all exceptionally resistant to strong oxidizing solutions and have high durability in reducing agents. They are also resistant to intergranular corrosion because of the low carbon content and the less carbide precipitation with welding.

The Application list is longer.

There are different forms and shapes of products manufactured with different standards that are used in a variety of applications.

They are used in sour gas wells, waste treatment plants, chemical processing components, pulp and paper industries, reaction vessels in chemical plants, heat exchangers, fans and in food processing equipment as well.

The Hastelloy properties are unique in that they are very much resistant to oxidation and reduction; they perform well under cryogenic temperatures and in high temperatures, resistant to wet chlorine gas, resistant to most chloride and chlorine derivatives and so on.

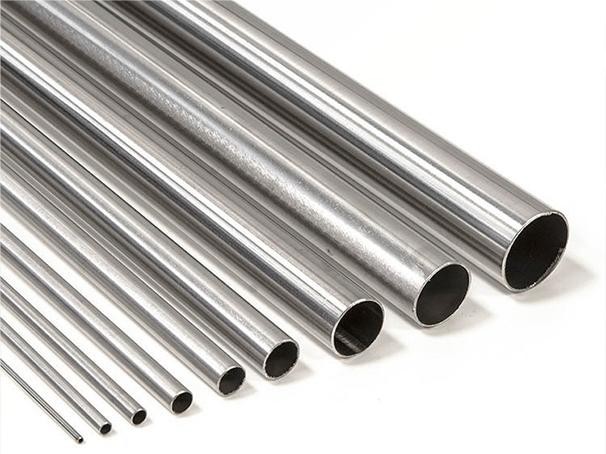

1 (34)(1).png

The Hastelloy price per kg differs from product to product, You can get a full price list from us — Get a quote today!


There are many Hastelloy advantages over ordinary metal and other alloys.

The resistance to localized corrosion is very high along with resistance to uniform corrosion.

The resistance is also good against most salts and brackish waters.


The Hastelloy abbreviation is used in the metal industry mostly instead using the full form nickel chromium molybdenum alloys. The Hastelloy alloy composition includes molybdenum, chromium, iron, tungsten, cobolt, manganese, copper, vanadium, phosphorus, silicon and sulfur. Depending on the grade and standards of the alloy, the composition differs. Each of these classes and grades has specific characteristics and applications.


As a professional Hastelloy supplier, TGPX sell all different grades and the different products as well. The products range from sheets to coils and pipes to bars.


Hastelloy Grades

Hastelloy C276

Hastelloy C22

Hastelloy B2

Hastelloy B3

Hastelloy X


Hastelloy Alloy ASTM Standard

AlloyUNSBarsPipes
C-4N06455ASTM B574/ B575/ B619B622 / B619 / SB 619 / B626 / SB 626
C-22N06022ASTM B564/ B472/ B574B622 / B619 / SB 619/ B626 / SB 626
C-2000N06200ASTM B564/ B472/ B574B622 / B619 / SB 619/ B626 / SB 626
G-30N06030ASTM B472/ B581B622 / B619 / SB 619/ B626 / SB 626
G-35N06035ASTM B564/ B472/ B574B622 / B619/ SB 619 / B626 / SB 626
C-276N10276ASTM B564/ B472/ B574B622 / B619 / SB 619/ B626 / SB 626
Hastelloy XN06002ASTM B564/ B472/ B574B622 / B619 / SB 619 B626 / SB 626
HAYNES ® HR-120, NAS H38XN08120
B407 / B514 / B515


Specification of Hastelloy

-Corrosion Resistant Grades

Hastelloy C276

Hastelloy C22

Hastelloy B2

Alloy C4

-Heat Resistant Grades

Alloy S

Alloy W

Alloy X


Hastelloy Temperature Range

HASTELLOY® B-3® alloy400 – 450 Deg C (750 – 840 Degree F)
C-22400 - 450Deg C (750 – 840 Degree F)
C-276870 – 1230Deg C (1600 – 2250 Degree F)
® N alloy704 to 871Deg C (1300 to 1600 Degree F)
HAYNES® 25 alloy980Deg C (1800 Degree F)
HAYNES® 188 alloy1095Deg C (2000 Degree F)


Hastelloy Alloy Applications & Uses

Chemical processing plants

Expansion bellow

Nuclear plants & processing

Industrial equipment


Hastelloy Composition

Alloy TypeCr%C%Co%W%Mo%V%Ai%Ti%Nb %Fe%Cu%Ni%Other %
Alloy B0.60.11.25-280.3---5.5-rest / balMn 0.80; Si 0.70
Alloy B210.021-26.0-30.0----2-rest / balMn 1.0, Si 0.10
Alloy C27614.0-16.50.022.53.0-4.515.0-17.00.35---4.0-7.0-rest / balMn 1.0; Si 0.05
Alloy X220.11.50.69--18.5---rest / balMn 0.6; Si 0.60
Alloy C160.071.2540170.3---5.75-rest / balMn 1.0; Si 0.70
Alloy C414.0-18.00.0152-14.0-17.0--0..70-3-rest / balMn 1.0 ; Si 0.08
Alloy N70.060.250.216.5----30.1rest / balMn 0.40; Si 0.25; B 0.01
Alloy S15.50.022114.50.60.2--3-rest / balMn 0.50; Si 0.40; B0.0009; La 0.02
Alloy F220.021.250.56.5---2.121-rest / balMn 1.50; Si 0.50
Alloy G21.0-23.50.052.515.5-7.5---1.7-2.518.0-21.01.5-2.5rest / balMn 1.0-2.0; P0.04; Si 1.0;
Alloy G223.0-26.00.03--5.0-7.0--0.70-1.50-rest / bal0.70-1.2047.0-52.0Mn 1.0; Si 1.0
Alloy W50.061.25-24.5----5.5-rest / balMn 0.050; Si 0.50


Hardness full form:

HRB = Hardness Rockwell “B".

Hastelloy GradeSheets HRBPlates HRB
C229395
C2769087
N96-
X5454


The Hastelloy price per kg differs from product to product, You can get a full price list from us — Get a quote today!
