Product Description

Finding Inconel distributors in China?

Stockist & Supplier of Inconel alloys - TGPX


The name Inconel steel applies to all nickel chromium based austenitic steels. These are superalloys of chromium and nickel.

They perform extremely well under high pressure and high temperature environments. They are very much resistant to oxidation corrosion and therefore could be used in oxidation prone applications.


Like the weathering steel, Inconel material also forms an oxide layer upon first contact with oxidizing agents and then oxide layer prevents from further corrosion due to oxidation.

Thermally induced crystal vacancies are less or absent in Inconel material which make them applied in high temperature environments where ordinary steel or aluminum would not stand.

The Inconel density changes with the different grades of the material. There are different grades designated by numbers such as 600, 617, 625, 690, 718 and X750. These are developed through different methods. Due to the rapid hardening of the material, cold working is not possible. Also, machining is difficult on these materials. There are special tools and procedures involved in the machining of this material to avoid the plastic deformation of the material or the tools.


The Inconel price is competitive and TGPX can provide you with a comprehensive price list upon request.


There are different grades of the Inconel alloy that are used in different industries and applications.

The Inconel x-750 is used mostly in gas turbine components such as blades, seals and rotors. There are different Inconel applications but mostly in the aviation, space and gas industries. The different Inconel grades can be used for different purposes.

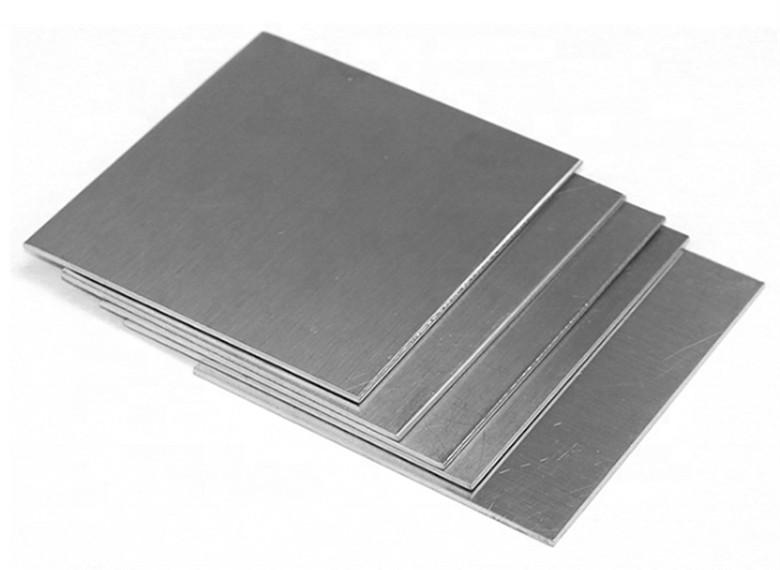

7 (9)(1).png


Inconel Grades

Inconel 600

Inconel 601

Inconel 625

Inconel 718

Inconel X750

Incoloy 800

Incoloy 825


Inconel ASTM Standard & Specification

Products Available ShapesInternational Standard
BarASTM B 446/ASME SB 446, ISO 9723, VdTÜV 499, BS 3076NA21, EN 10095, DIN 17752 , ASME Code Case 1935, SAE/AMS 5666,
WireDIN 17753, SAE/AMS 5837, ISO 9724
Sheet / PlateASTM B 443/ASTM SB 443,ISO 6208, VdTÜV 499, BS 3072NA21 (Sheet, Plates), EN 10095, DIN 17750, ASME Code Case 1935, SAE/AMS 5599 & 5869 & MAM 5599,
Pipe / TubeASTM B444/ B829, ASME SB 444/ SB 829 (Seamless), ASME SB 704/SB 751 and ASTM B704/B 751 (Welded), ASME SB 705/ SB 775 and ASTM B705/B 775 (Welded), VdTÜV 499, BS 3074NA21 (Seamless), ISO 6207, SAE/AMS 5581 (Seamless & Welded), DIN 17751, ASME Code Case 1935.
Pipe Fittings (Buttweld)ASTM B 366/ ASME SB 366
Forging/ Forged ItemsASTM B 564/ ASME SB 564, DIN 17754, ISO 9725
Welding WireA5.14 ERNiFeCr-2
Heat Resisting Steels & AlloysDIN 17744, ISO 4955A


Inconel Alloy Temperature Range

Inconel 600 Heat Capacity unitsMetric: 0.444 J/g-°CEnglish: 0.106 BTU/lb-°F
Inconel 625 Heat Capacity unitsMetric: 0.41 J/g-°CEnglish: 0.098 BTU/lb-°F


Inconel Applications & Uses

Aerospace industries

Marine applications

Sea-water applications

Jet Engine Components

Commercial Gas Turbines

Food Processing

Chemical Processing

Cryogenic Storage Tanks

Power generation

Nuclear reactors

Gas turbines

Pressure vessels


Inconel Alloy Composition

InconelElement, proportion by mass (%)
NiCrFeMoNb & TaCCoCuMnAlTiSiSPB
600≥72.014.0–17.06.0–10.0

≤0.15N/A≤0.5≤1.0

≤0.5≤0.015

61744.2–61.020.0–24.0≤3.08.0–10.0
0.05–0.1510.0–15.0≤0.5≤0.50.8–1.5≤0.6≤0.5≤0.015≤0.015≤0.006
625≥58.020.0–23.0≤5.08.0–10.03.15–4.15≤0.1≤1.0
≤0.5≤0.4≤0.4≤0.5≤0.015≤0.015
690≥5827–317–11

≤0.05
≤0.50≤0.50

≤0.50≤0.015

Nuclear grade 690≥5828–317–11

≤0.04≤0.10≤0.50≤0.50

≤0.50≤0.015

71850.0–55.017.0–21.0Remainder2.8–3.34.75–5.5≤0.08≤1.0≤0.3≤0.350.2–0.80.65–1.15≤0.35≤0.015≤0.015≤0.006
X-750≥70.014.0–17.05.0–9.0
0.7–1.2≤0.08≤1.0≤0.5≤1.00.4–1.02.25–2.75≤0.5≤0.01


Properties of Inconel

ProductsHardness, RockwellForm and ConditionYield StrengthTensile StrengthElongation %
ksiMPaksiMPa
Bars65-85BCold drawn Annealed25-50170-34580-100550-69055-35
Plates65-85BHot rolled Annealed30-50205-34580-100550-72555-35
Sheets88B maxCold Rolled (CR) Annealed30-45205-31080-100550-69055-35
Pipe/ Tubes88B maxCold Drawn Annealed25-50170-34580-100550-69055-35
Wires-Cold Drawn Annealed35-75240-52080-120550-83045-20
Wires-Cold Drawn No 1 Temper70-105480-725105-135725-93035-15
Wires-Spring Temper150-2101035-1450170-2201170-15205-2
Bars/ Rods≤ 287 HBAnnealed6041412082730
Sheet145-240Annealed6041412082730
Tube-Annealed6041412082735


Certificate

FAQ

Q: Are you a manufacturer?

A: Yes , we are a manufacturer, We have own factory, which is located in JIANGSU,CHINA. We have a leading power in producing and exporting stainless steel.carbon steel, various nickel-based alloys etc. We promise that we are what you are looking for.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.

Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?

A:Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.

Q:Can we get the some samples?Any charges?

A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.

Q: How do you make our business long-term and good relationship ?

A:We keep good quality and competitive price to ensure our customers' benefit; We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.

Q:Are there any discounts now?

A:We have a full reduction activity for new buyers who send inquiry on the web page, that is, send demand information from the input box at the bottom of this page.
